NOW, THE LEGENDARY ANALOG DELAY IS BACK WITH A MODERN EDGE

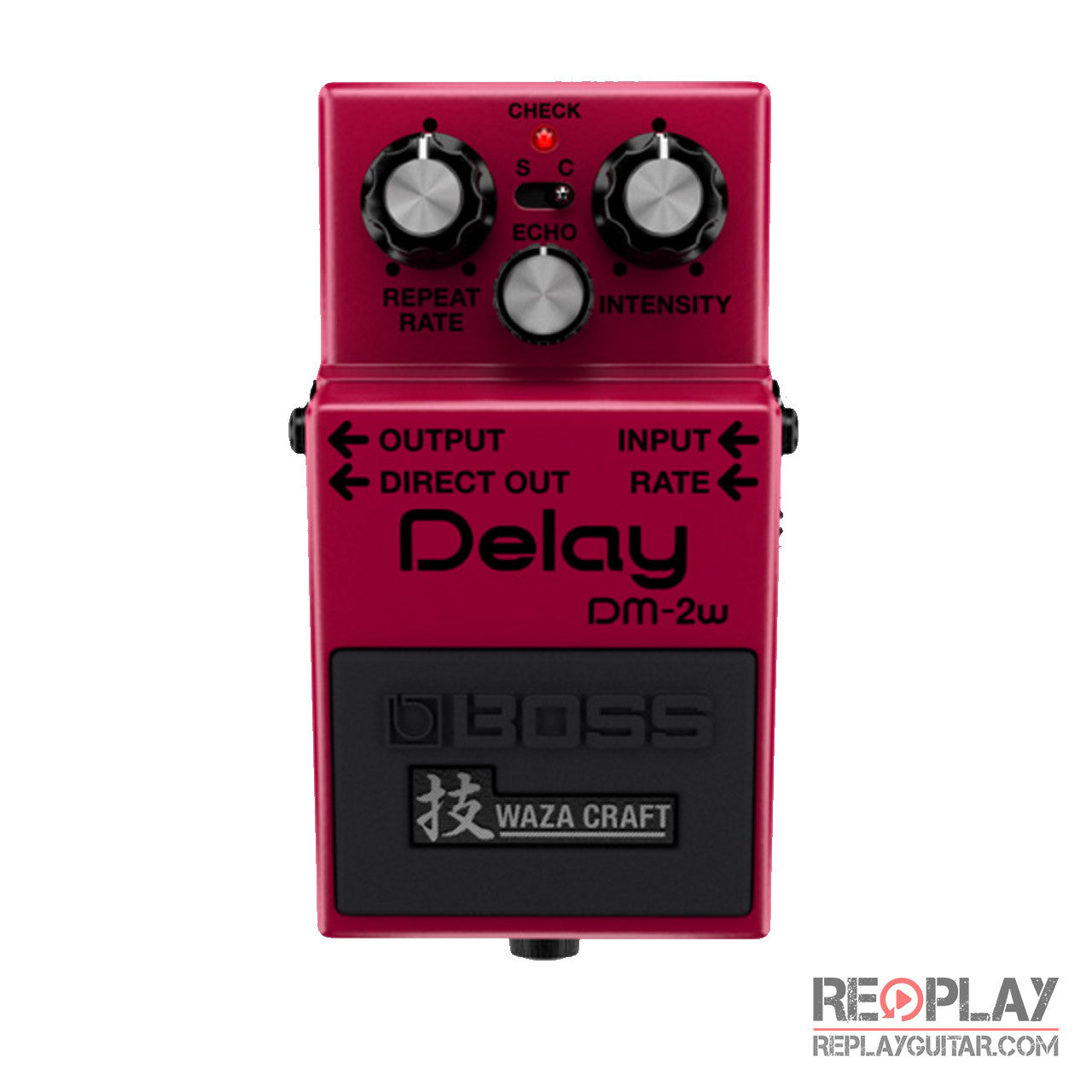

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• True reproduction of the vintage DM-2 Delay sound
• Premium all-analog circuit with BBD (bucket brigade) delay line
• Standard mode for authentic DM-2 tone with 20-300 ms delay time
• Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
• Expression pedal input for foot control of delay time
• Two output jacks allow separate output of delay and direct sounds
• BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Delay Time: Standard Mode: 20 ms to 300 ms, Custom Mode: 40 ms to 800ms

Controls: Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, RATE jack: 1/4-inch TRS phone type, DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately)

Current Draw: 35 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) Alkaline: Approx. 15 hours, Carbon: Approx. 5 hours
Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)

Options (sold separately): AC adaptor: PSA series, Expression pedal: Roland EV-5
